Fresh Air / 11

150 Air Exchanger

Smart wall-mounted bedroom fresh air unit; upright fresh air purifier with 150 m³/h airflow; ultra-quiet 17.4 dB fresh air unit for peaceful sleep; brushless DC motor; 2+1 composite filter system; powerful formaldehyde and bacteria removal; fully automatic air valve with electric auxiliary heating; suitable for small to medium-sized homes ranging from 20 to 53 m².

立即询盘返回系列列表
690x310x185mmProduct Dimensions
8kgNet Weight of Product
<53square metersCoverage Area
Main Image
Air Exchanger 150
  • 概览
  • 参数
  • 工艺
  • 场景
  • 文档
  • 询盘
立即询盘
Products/Fresh Air/Air Exchanger 150
Main Image
Detail Photo
Detail Photo
Detailed Data
1101 / 04

Fresh Air · 11

Air Exchanger 150

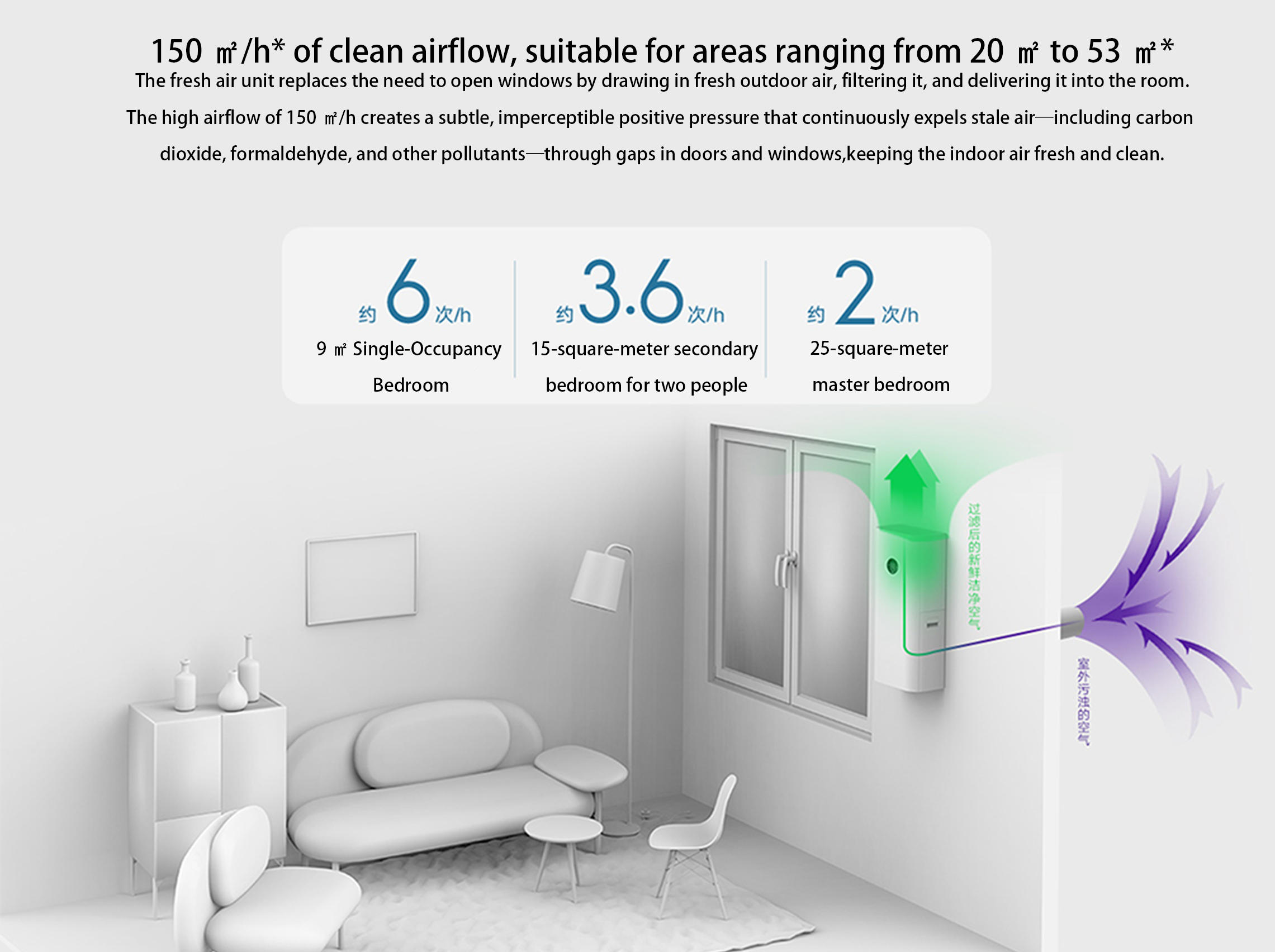

Smart wall-mounted bedroom fresh air unit; upright fresh air purifier with 150 m³/h airflow; ultra-quiet 17.4 dB fresh air unit for peaceful sleep; brushless DC motor; 2+1 composite filter system; powerful formaldehyde and bacteria removal; fully automatic air valve with electric auxiliary heating; suitable for small to medium-sized homes ranging from 20 to 53 m².

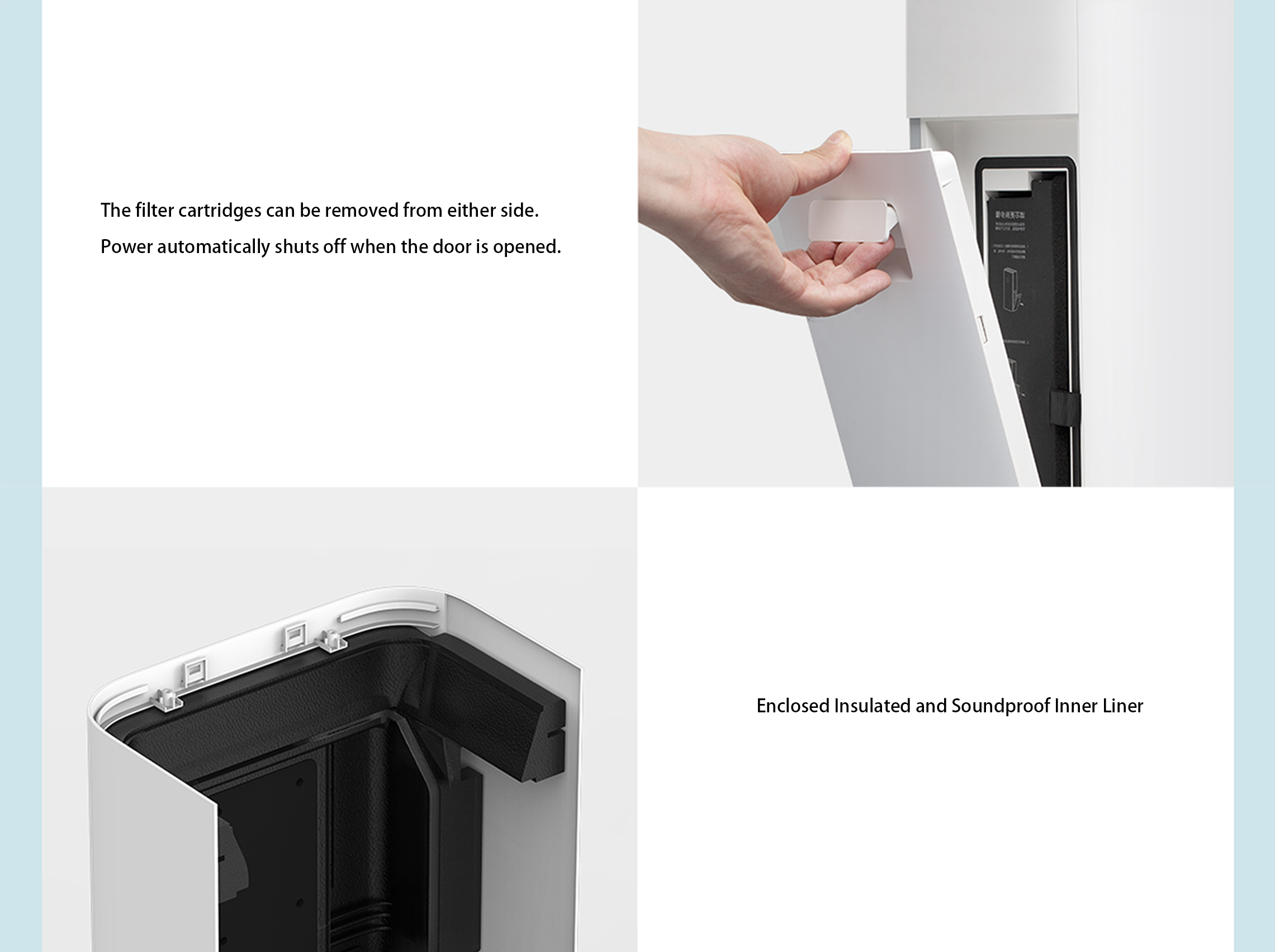

• Power Supply: AC 220V~ 50Hz • Rated Power: 20W; Auxiliary Heating Power: 400W • Rated Fresh Air Flow: 150 m³/h; Suitable for Areas: 20 m²–53 m² • Noise Level: As low as 17.4 dB(A) in Sleep Mode • Fan Configuration: Brushless DC motor; inner housing enclosed in an insulated, noise-reducing compartment • Airflow Components: Fully automatic air damper, effectively prevents backflow • Filtration System: 2+1-layer composite filtration (insect screen + MERV 12 medium-efficiency filter + high-efficiency filter), effectively captures PM2.5, pollen, bacteria, and formaldehyde pollutants • Sensors: Combined CO₂ and particulate matter sensor; externally mounted away from the air outlet for more accurate monitoring • Heating Function: Built-in electric auxiliary heating, delivering constant-temperature fresh air in winter • Display: LED touchscreen • Safety Design: Filters can be removed from either side; power automatically shuts off when the door is opened • Operating Principle: Micro-positive-pressure fresh air system continuously replaces indoor air, reducing concentrations of formaldehyde, CO₂, and PM2.5 • Wireless Connection: 2.4 GHz Wi-Fi • Unit Dimensions: 690 × 310 × 185 mm • Net Weight: Approx. 8 kg

Product Dimensions690x310x185mm
Net Weight of Product8kg
Coverage Area<53square meters

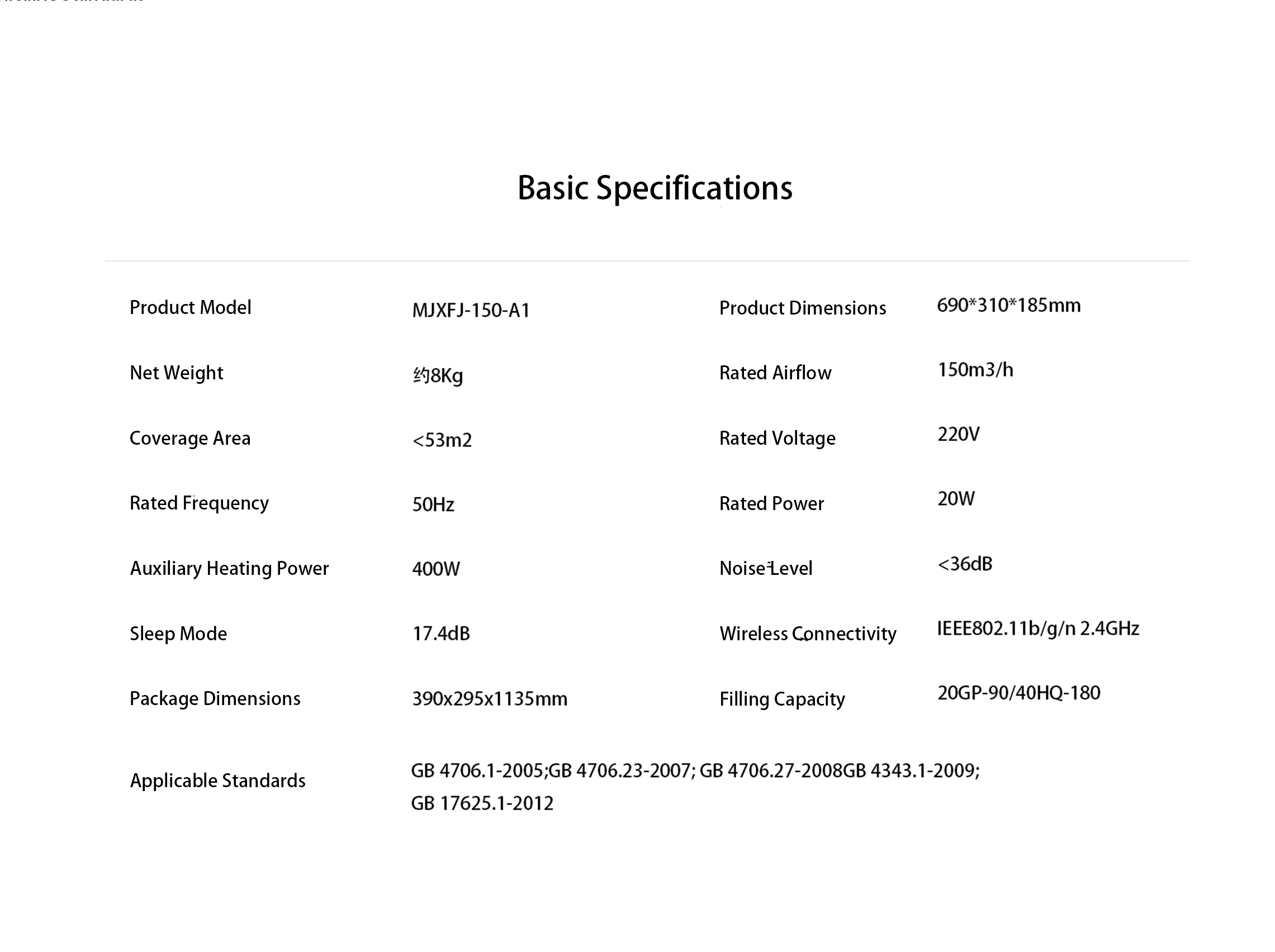

  • ✓Product Dimensions：690x310x185mm
  • ✓Net Weight of Product：8kg
  • ✓Noise：<36dB(A)
  • ✓Coverage Area：<53square meters
  • ✓Rated Voltage：220V
  • ✓Rated Power：20W
  • ✓Package Dimensions：390x295x1135mm
  • ✓Container Loading Volume：20GP-90/40HQ-180GP/HQ
获取报价技术文档
Core Specifications

核心参数

面向项目方与采购的核心指标，可在询盘时进一步定制。

690x310x185mmProduct Dimensions
8kgNet Weight of Product
<36dB(A)Noise
<53square metersCoverage Area

Material & Process

材料 · 工艺.

Customization

定制说明

Documents

技术文档下载

技术规格、结构图与认证文件按版本管理。需要完整 BOM 或售后手册请通过询盘单获取。

暂无在线文档。如需技术资料，请在询盘中注明产品型号和所需文档类型。

Inquiry

开始一次询盘

留下您的项目背景，我们将在 24 小时内由对应区域的项目经理回复，并附带选型建议、报价区间与样品方案。

✓24 小时内响应
✓免费技术方案与选型建议
✓一对一项目经理对接
立即询盘
